This machine adopts T-slot & vacuum table. This table is composed of a vacuum pump and a high-quality bakelite board. It can be divided into six sections and eight sections for vacuum adsorption, which can enhance the adsorption function even more. Opening the vacuum valve, the engraving plate will be directly fixed, which has the advantages of convenient loading and unloading, saving time, high efficiency, and fast speed. It is suitable for wood door processing and large-scale plate engraving.
Choose multi-head dual process technology for the most productivity a machine can offer - available on most AD Series models. Imagine that you could take the heaviest, fastest and highest performing machine available in the world at any price and then double its performance. What if you could get the throughput of two complete machines out of a single machine footprint? How would you like the flexibility of being able to run two completely different programs at the exact same time on only one machine? Or to run two identical parts at the same time? With the optional TigerTec Multi-Head Dual Process Technology, you can do all of this and more.

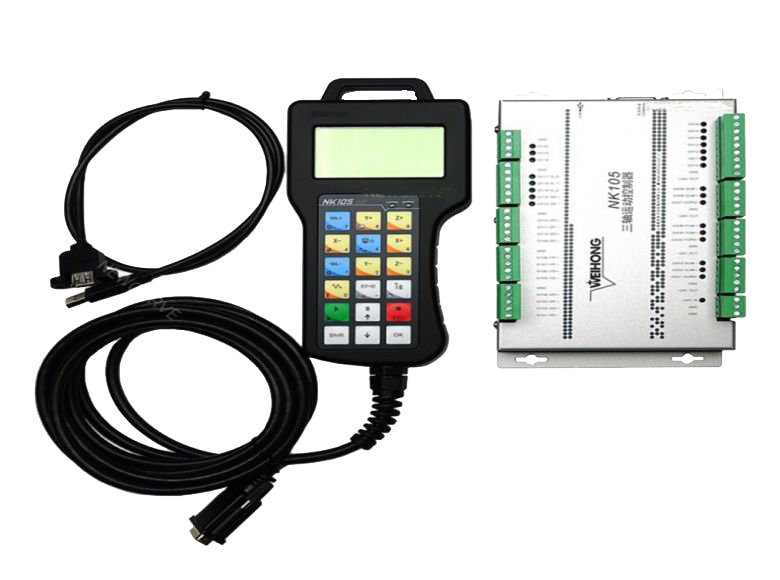

Easy-to-use hand held controller: Separated design, protect control parsing module to the largest extent ; Arc machining, faster and rounder ; Support multi-language, switch between metric and inch ; Breakpoint resume.
Ruggedly constructed machine structure. Material is Stress relieved and annealed for deformation free, thus always keep machine accurate. Machining center to work on the table, gantry and other big parts for CNC routers. With the help of the big machine, we get better accuracy and good finishing.

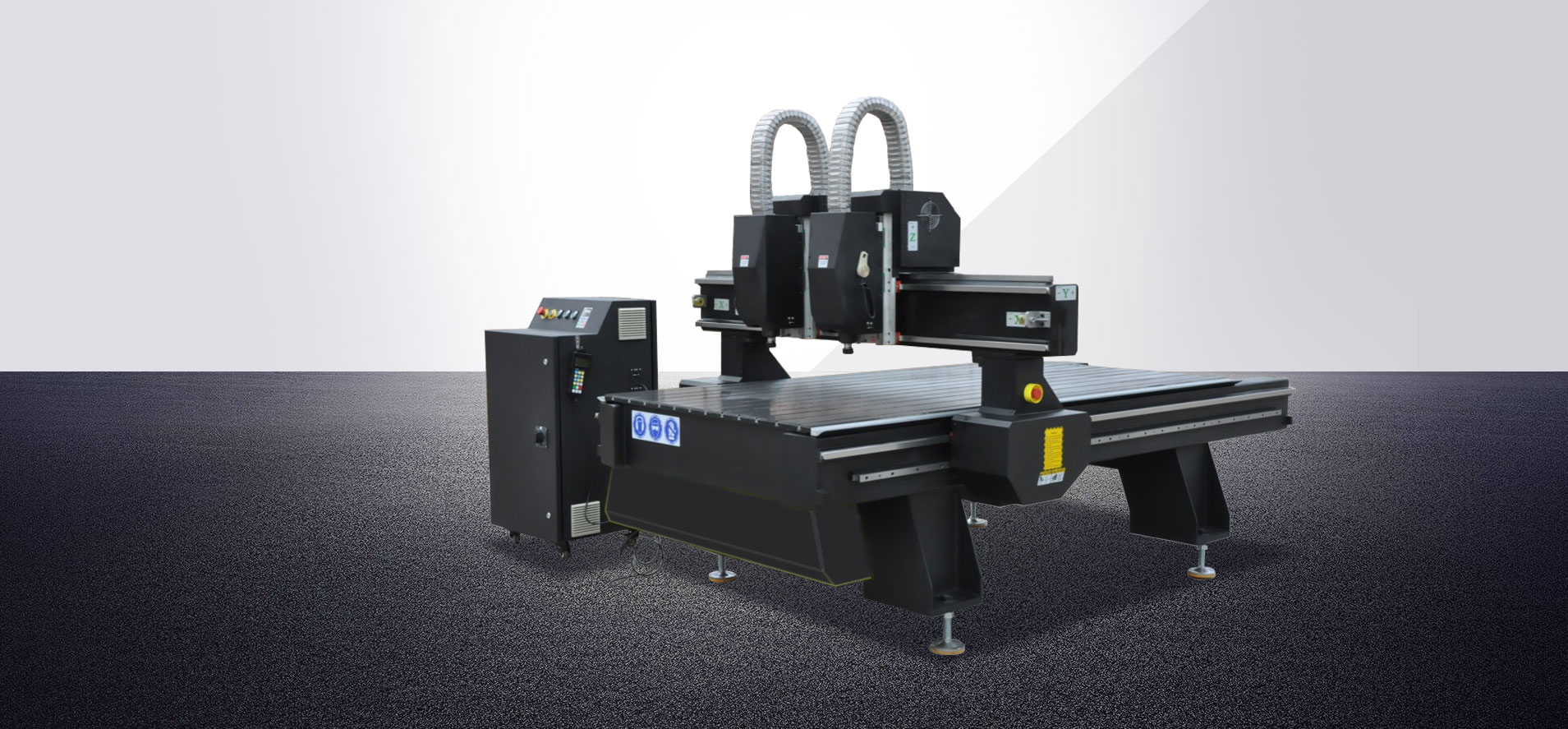

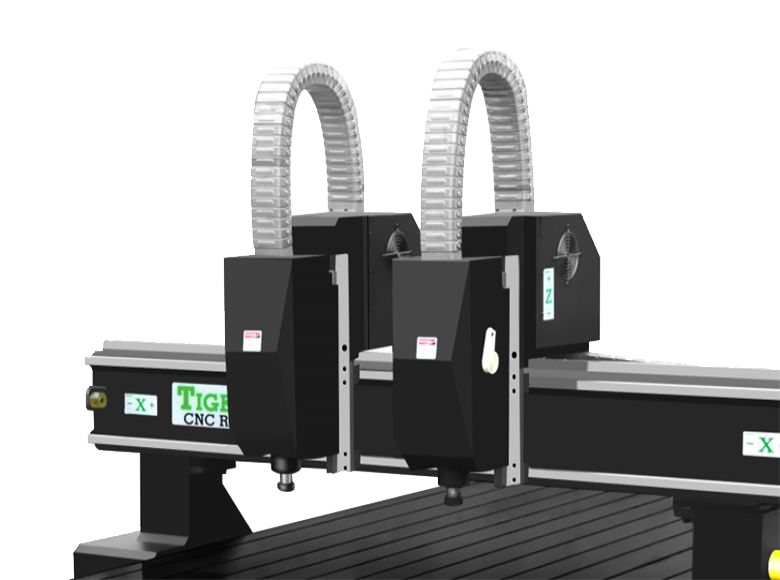

TR408AD double Z axis Double spindles can work at the same time, so it greatly improves the plate processing speed and complete the work efficiency of the two equipment at the same time. This machine installs double independent two spindles. The double spindle can work together, the spindle can also work alone.
This machine can be also used for mirror-sculpture. (Same engraving path, but in opposite directions.)
Outstanding features:
* Two spindles can complete processing independently, so more flexible processing is realized.
* Two spindles can work at the same time, which greatly improves the processing efficiency.
Applications:
An TigerTec CNC router will.
Eradicate the need for outsourcing, saving time and money.
Improve turnaround with TigerTec products offering up to 70% faster production capabilities than manual processes.
Improve bottom line, reduce human error and material wastage by up to 30% by getting it right on the first pass.

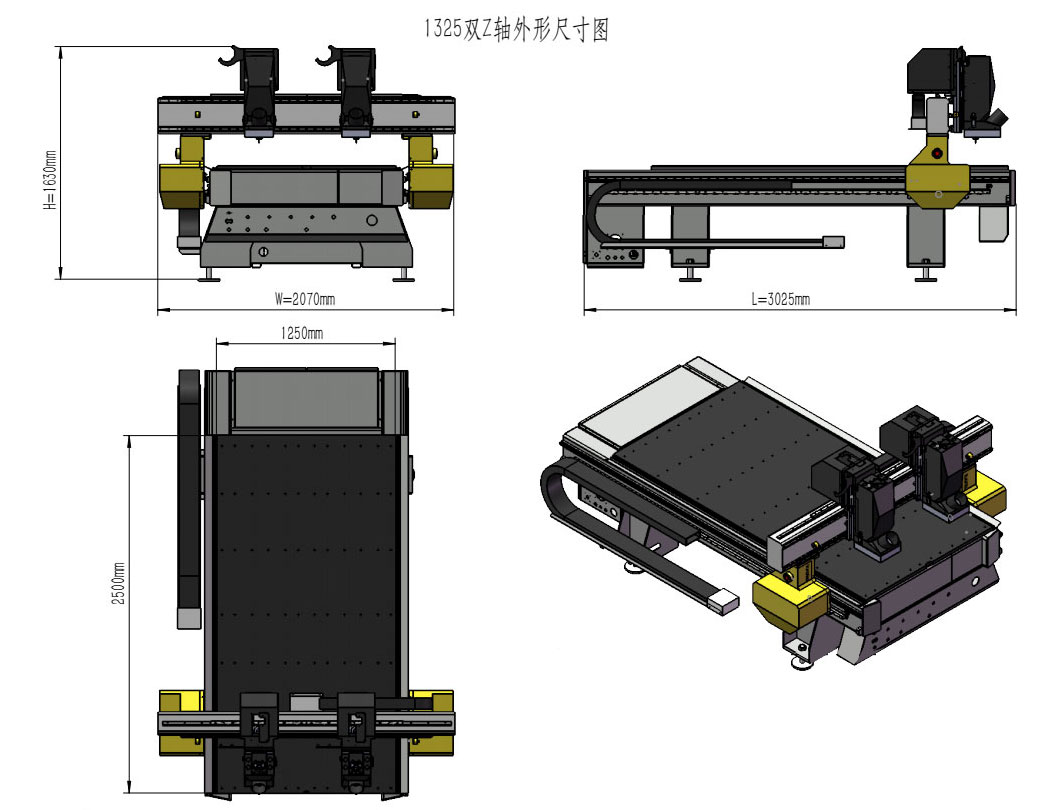

Model No. | Process Area | Accuracy | Weight | Foot Print （W*L*H） | ||||
X | Y | Z | ||||||
TR 408AD dual Z axes
| 1240mm | 2460mm | 200mm | + 0.05mm/m | 1400KGS | 2024mm | 3300mm | 1600mm |
51.2″ | 98.4″ | 7.9″ | 79.7″ | 129.9″ | 63″ | |||
TR510AD dual Z axes | 1500mm | 3000mm | 200mm | + 0.05mm/m | 1700KGS | 2224mm | 3800mm | 1600mm |
59.0″ | 118.1″ | 7.9″ | 87.6″ | 149.6″ | 63″ | |||
TR710AD dual Z axes | 2000mm | 3000mm | 200mm | + 0.05mm/m | 2000KGS | 2724mm | 3800mm | 1600mm |
78.7″ | 118.1″ | 7.9″ | 107.2″ | 149.6″ | 63″ | |||
TR712AD dual Z axes | 2000mm | 4000mm | 200mm | + 0.05mm/m | 2200KGS | 2724mm | 4800mm | 1600mm |
78.7″ | 157.5″ | 7.9″ | 107.2″ | 189″ | 63″ | |||
CNC - Nesting machining centre is the new high-performance machining centre for Nesting operations, compact and efficient, with a gantry structure, TigerTec offers top-of-the-range technology and guarantees optimum precision in every machining operation.
EXPLOPE
The AD series features an structural Tube Steel one-piece welded frame construction with structural steel tube gantry design. The machines are built to outlast and outperform other machines, no matter how much you use your CNC router, you’ll get the precision you need every time from the TigerTec AD Series.
