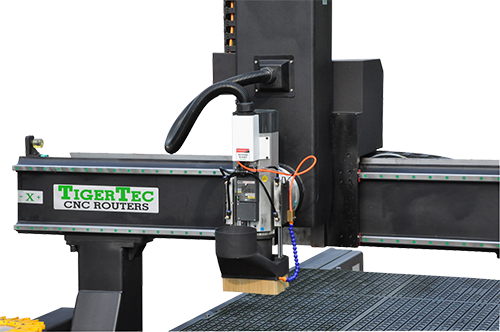

HSD ATC spindle 9.5KW with air-cooling, ER32, 24000RPM, characterised by extremely high relicability and stability for processing work. Spindle can be rotated 180 degrees to engrave and cut 4D processing work.

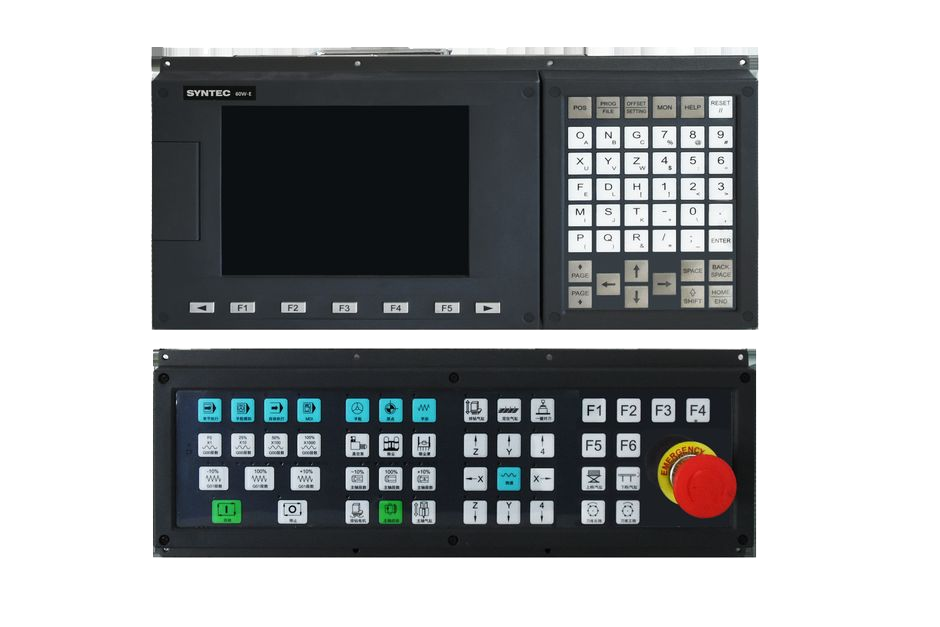

The functionality of the control system allows dominance over offsets, file manipulation, process speeds and also tool length and wear compensation.

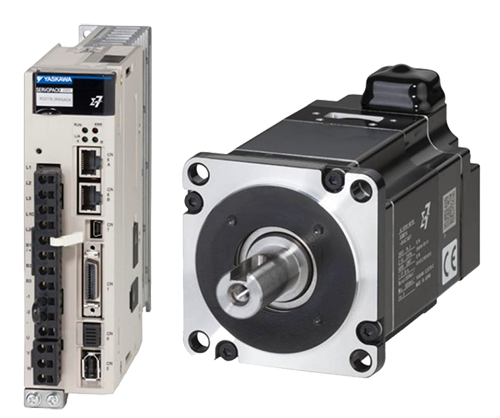

The yaskawa servo driver is designed to provide you with an excellent performance and high reliability. Small size, easy to carry and store, can be used for a long time. High quality performance: the servo motor is made of high-quality aluminum alloy material, which is durable and has good corrosion resistance. Convenient operation: the servo motor is equipped with a high-speed variable speed sensor, which can be adjusted according to different needs. Perfect for any occasion: this servo motor is suitable for all kinds of weather conditions, such as rainy, snowy, windy, and so on.

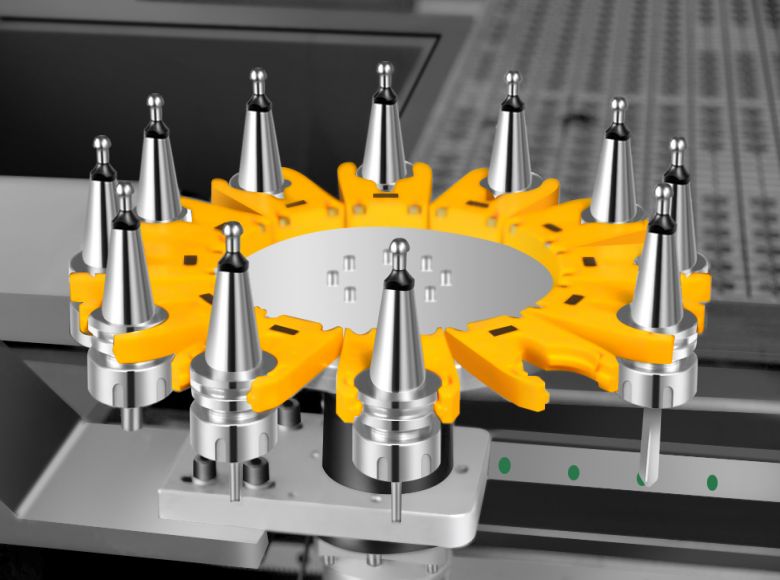

Carrousel with 12 automatic tool change facility by Servo motor ( Upgrade available up to 16 or 20 ). faster tool change speed, higher production efficiency.
We have been producing CNC routers, routing machines and tables that are extra long, extra wide and extra high since we began. Being an China manufacturer we can custom build a CNC routing machine to your specifications.
The heavy duty construction of TigerTec CNC routing machines means that we can produce much larger machines than those generally available, without compromising on build strength and rigidity.
Fully welded steel frames, heavy duty steel gantry and column supports, over spec bearings and heavy duty drive systems all combine to provide machinery with outstanding capabilities and reliability.
Our vast experience across a broad range of industries gives us the ability to provide customised solutions and fulfill requests for specialist applications. Our engineering and R&D team can provide cost effective additions to your machine to help improve productivity.
Applications:

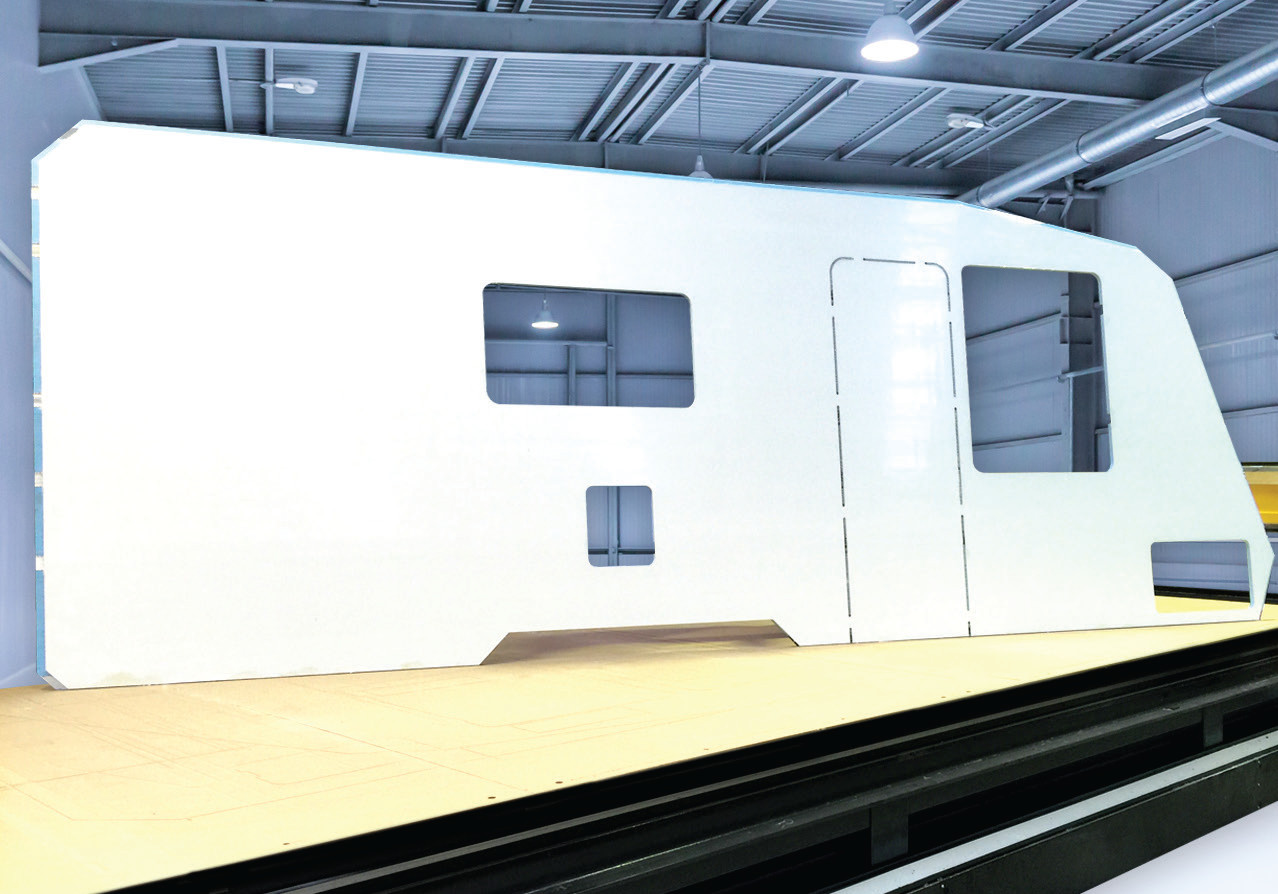

Caravan and motor home manufacturers, truck body and bull bar manufacturers, aluminium suppliers machining large sheet and plate, stair manufacturers, aerospace component manufacturers, architectural wall panel manufacturers, boat and yacht builders and so on.
Model No. | Process Area | Accuracy | Weight | Foot Print （W*L*H） | ||||
X | Y | Z | ||||||
TR408AD -4th axis | 1240mm | 2460mm | 200mm | ± 0.05mm /m | 1500KGS | 2024mm | 3300mm | 1600mm |
51.2″ | 98.4″ | 7.9″ | 79.7″ | 129.9″ | 63″ | |||
TR510AD-4th axis | 1500mm | 3000mm | 200mm | ± 0.05mm /m | 1800KGS | 2224mm | 3800mm | 1600mm |
59.0″ | 118.1″ | 7.9″ | 87.6″ | 149.6″ | 63″ | |||
TR710AD-4th axis | 2000mm | 3000mm | 200mm | ± 0.05mm /m | 2100KGS | 2724mm | 3800mm | 1600mm |
78.7″ | 118.1″ | 7.9″ | 107.2″ | 149.6″ | 63″ | |||
TR712AD-4th axis | 2000mm | 4000mm | 200mm | ± 0.05mm /m | 2300KGS | 2724mm | 4800mm | 1600mm |
78.7″ | 157.5″ | 7.9″ | 107.2″ | 189″ | 63″ | |||

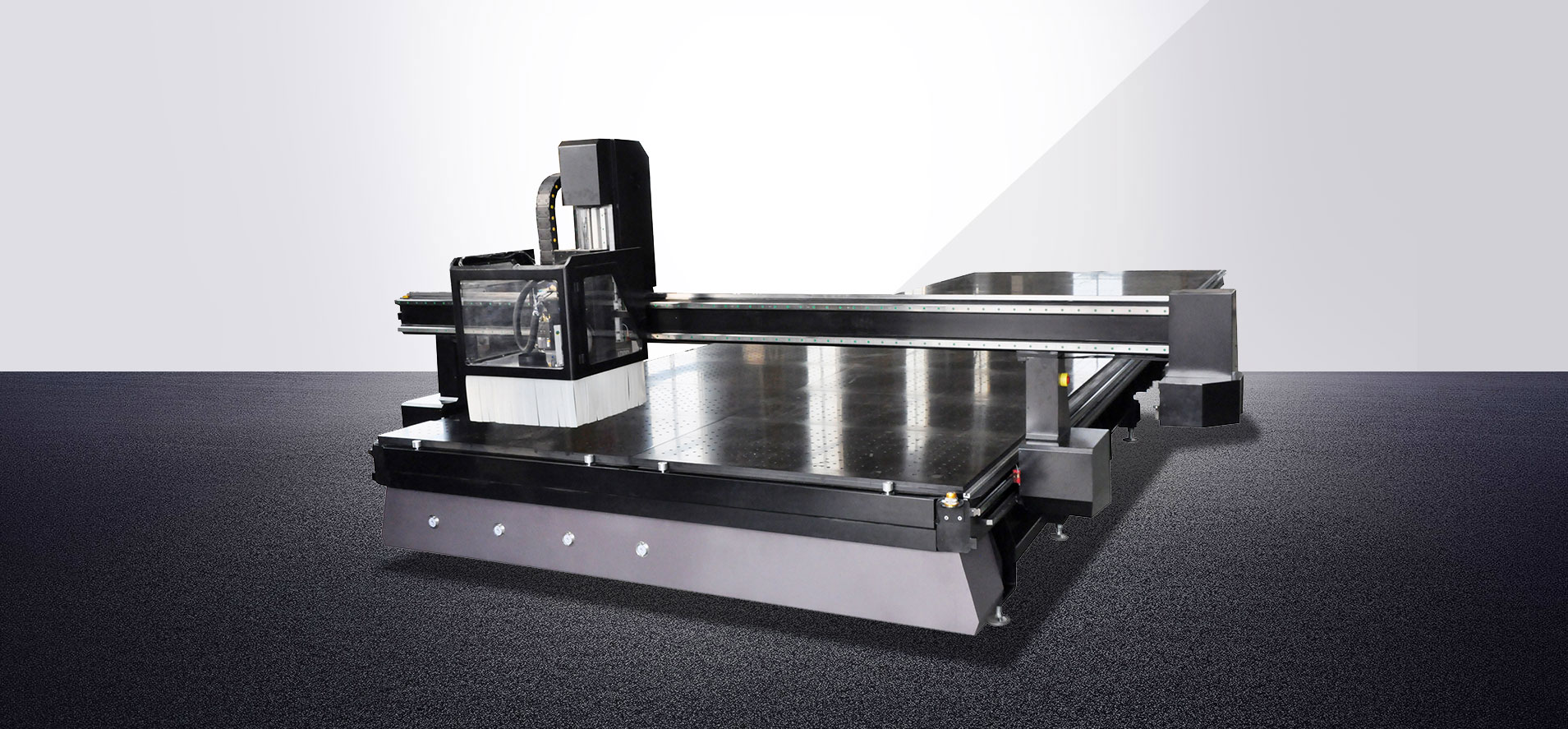

CNC - Nesting machining centre is the new high-performance machining centre for Nesting operations, compact and efficient, with a gantry structure, TigerTec offers top-of-the-range technology and guarantees optimum precision in every machining operation.
EXPLOPE

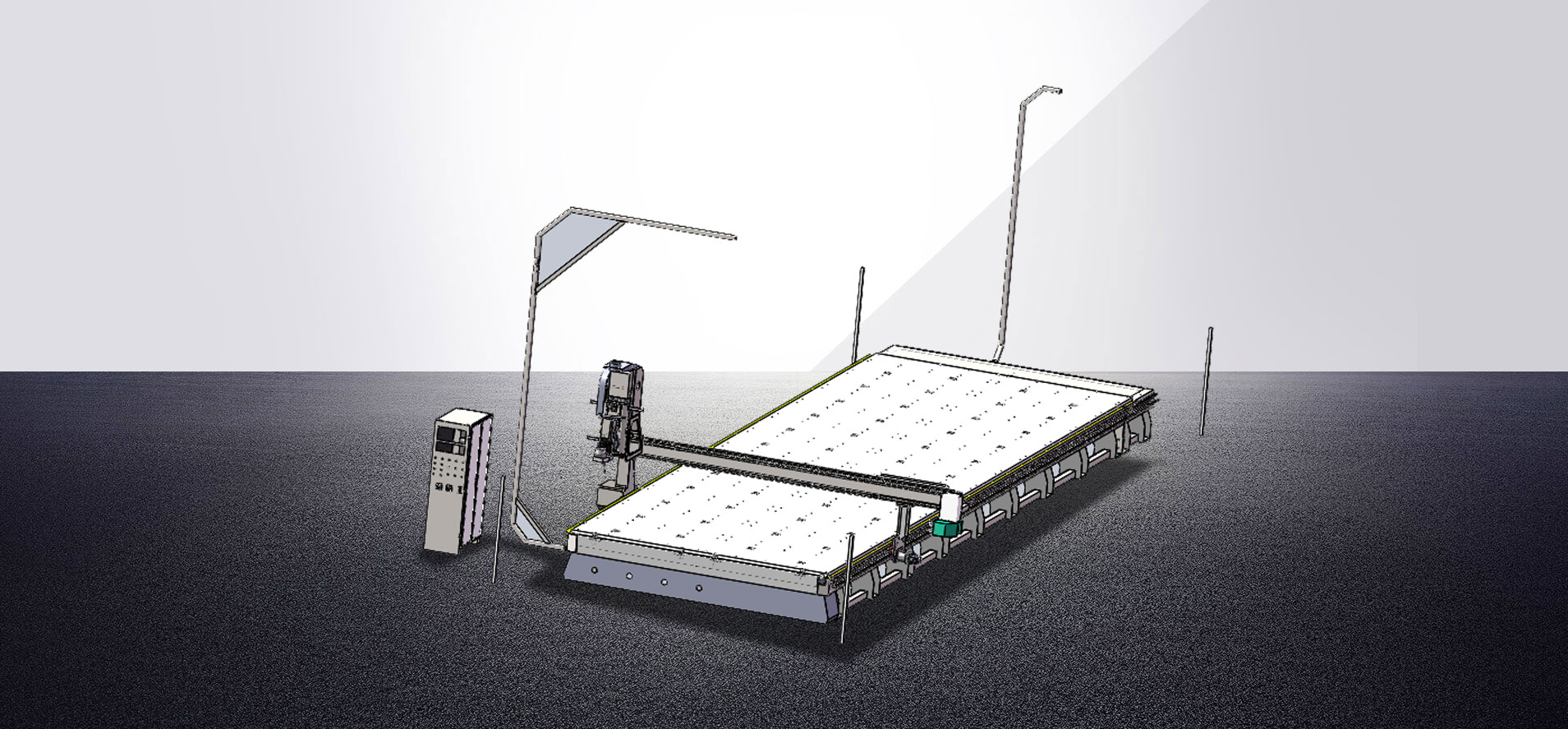

The AD series features an structural Tube Steel one-piece welded frame construction with structural steel tube gantry design. The machines are built to outlast and outperform other machines, no matter how much you use your CNC router, you’ll get the precision you need every time from the TigerTec AD Series.
EXPLOPE
Hydraulic Bending Machine is a type of sheet metal bending machine, which is suitable for sheet metal plate bending process. The press brake capacity ranges from 40 ton to 400 ton and the table length from 2 meters to 6 meters. Hydraulic Bending Machine belongs to forging machineries. The main role is in the metal processing industry. Then, its products are widely used in light industry, aviation, shipbuilding, metallurgy, instrument, electrical appliances, stainless steel products, steel structure construction and other industries.
EXPLOPE
TigerTec Inc is a manufacturer of CNC routers, CNC plasma cutters, CNC laser cutters, CNC assessories, Fiber laser cutting machine and handheld fiber laser welding machine and so on.
