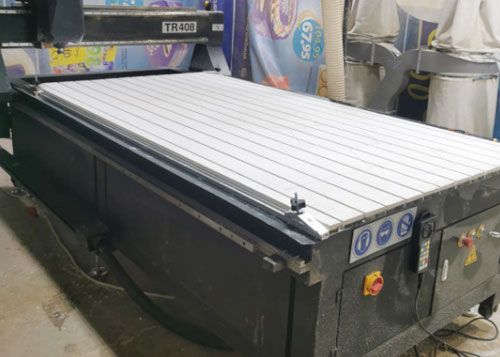

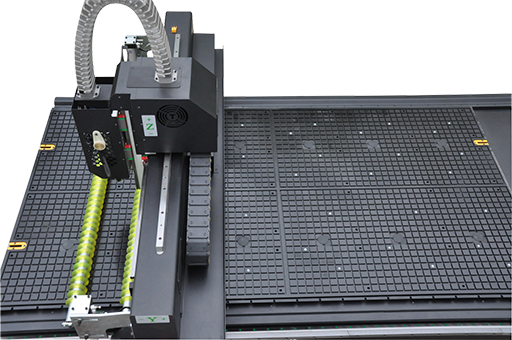

The table can be zoned by easily moving gasket around to customize specific sections. Gasketing can also be routed to accommodate various material sizes and styles.
The gantry is constructed of tubular steel with reinforcing ribs.Thisquality engineering and workmanship result in smooth precision cutting.

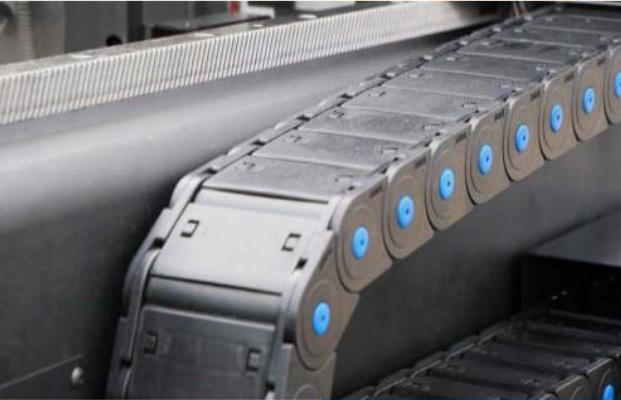

Including precision rack and pinion drive, the heavy duty fully enclosed energy chain prevents ingress of chips and dust reducing wear.

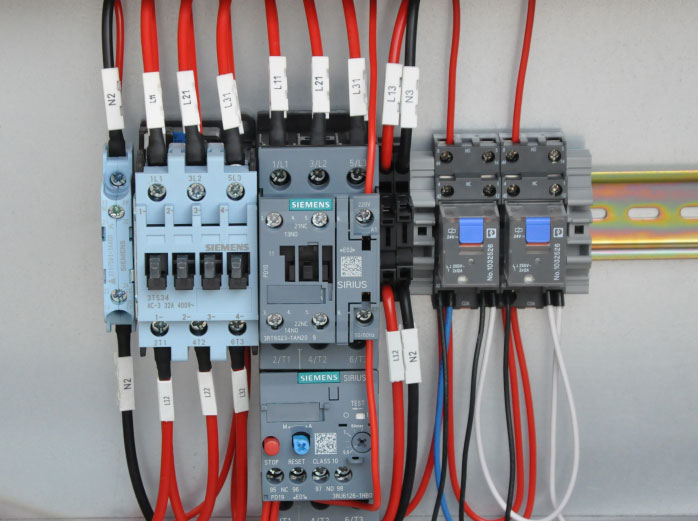

Siemens contactors with a robust and reliable, fraceable, numbered wiring scheme give you long term peace of mind.

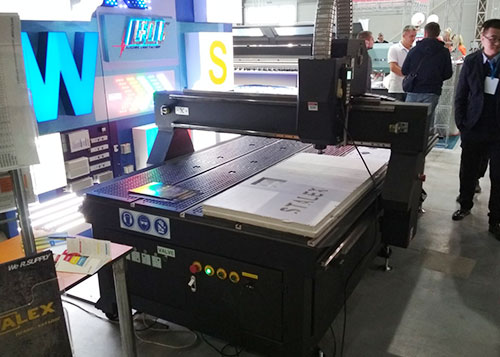

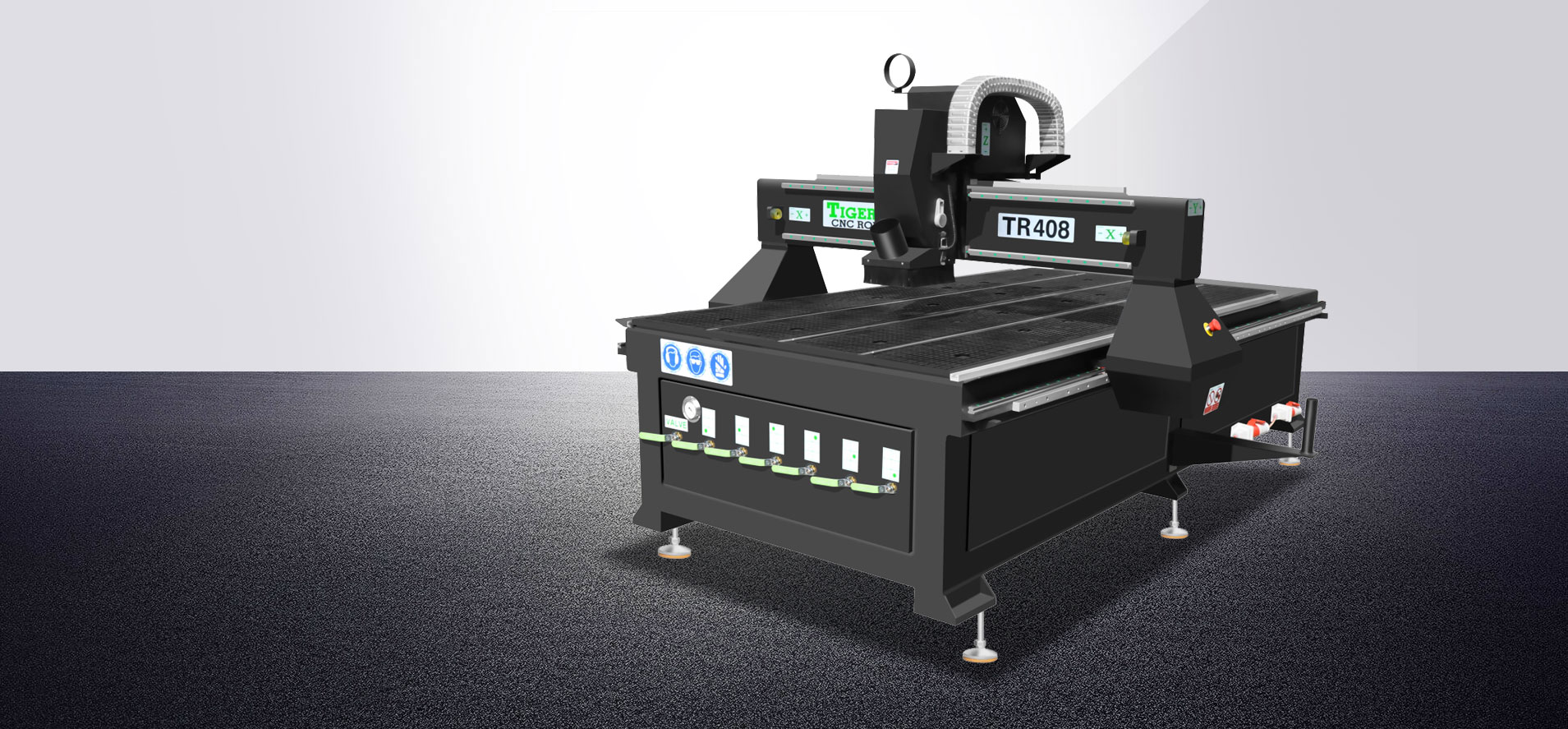

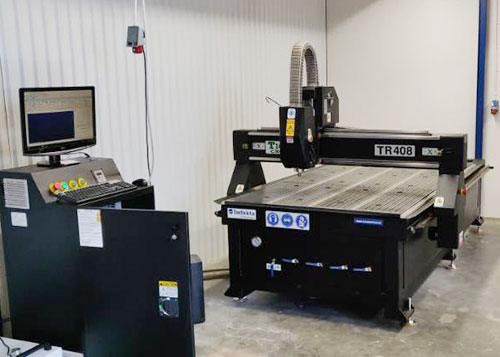

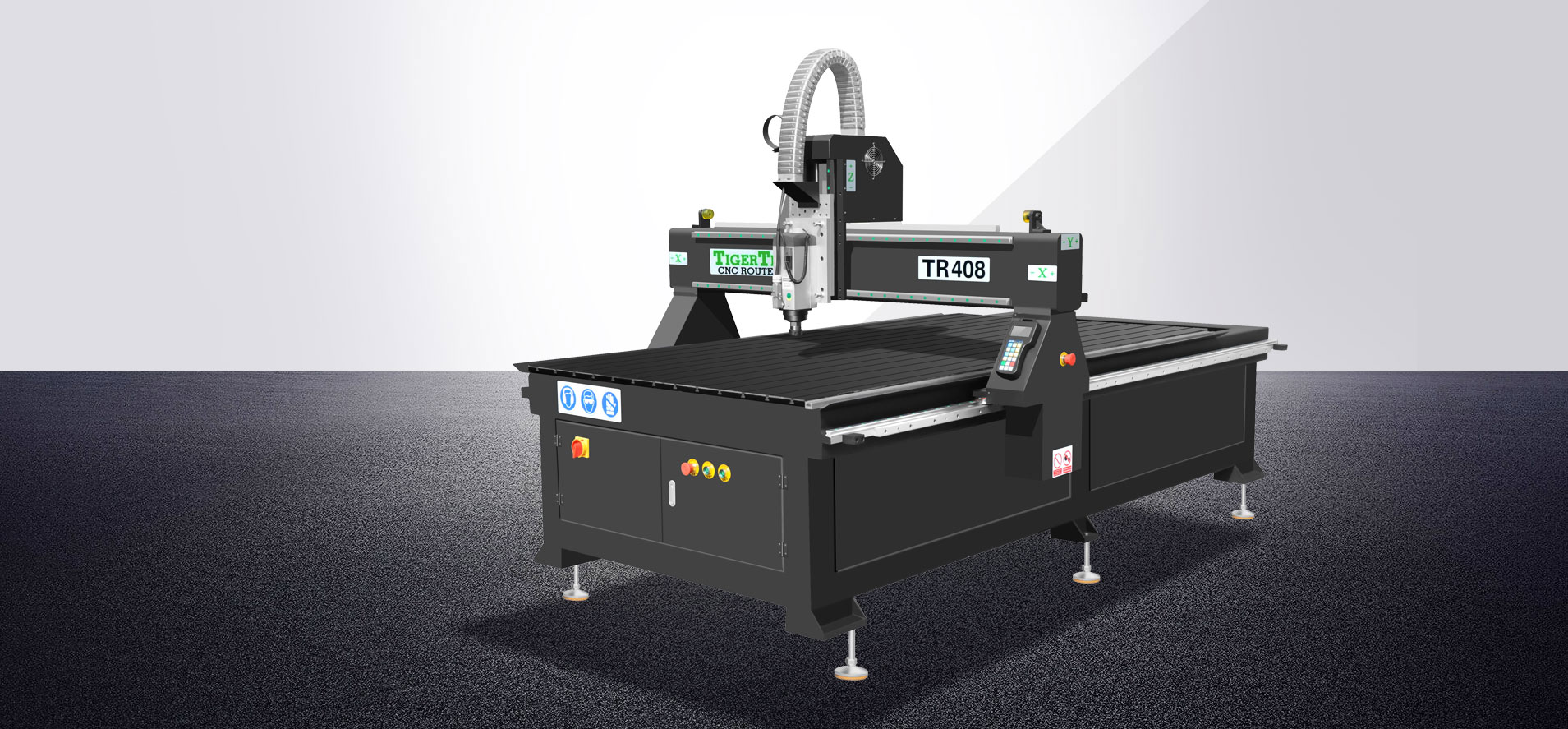

TigerTec TR408 SHOP Series CNC Routers are extremely flexible machines. We designed them for easy configuration to meet high speed routing application requirements. Ideal for Sign Making, Prototyping, Model Making, Engraving, Woodworking, Metal Engraving, Plastics, Foam, Educational Applications and General Fabrication.
Outstanding features:
*1240X2460mm (4'X 8') process area
*Easy to Use Hand-held controller
*With a 3.0KW HSD high frequency spindle
*TigerTec rack pinion and Linear rails on all 3-axes
*Maintenance free brushless stepper drive motors
*T-slot working table with T-clamp for fixing the processing materials
Options:
*6.0KW, 7.0KW Spindle available upon request.
*5'x 10', 7' x 12'stock sizes (Special sizes available upon request)
*Optional PC based system available
*T-slot vacuum working table
*Japan THK linear rail
*Germany WMH Helical rack pinion
*Servo driving system
*Mist cooling system
*Lubricating system
*Dust collector
Vacuum pumps from China or Germany for your choice
Applications:
Ideal for Sign Making, Prototyping, model Making, Engraving, Woodworking, Metal Engraving, Plastics, Foam Educational Applications and General Fabrication. Designed to cut a multitude of materials such as composite materiasl, foam, plastic, solid wood, soft wood, acrylic, MDF, bamboo, PVC, double color board, brassm copper, aluminum and ACP etc.

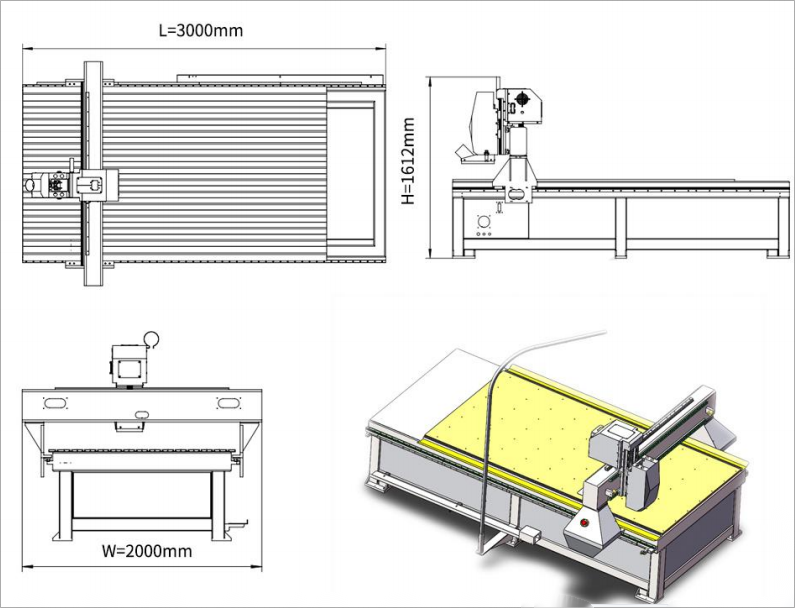

Model No. | Process Area | Accuracy | Weight | Foot Print | ||||
X | Y | Z | W | L | H | |||
TR408SHOP | 1240mm | 2460mm | 200mm | ± 0.05mm | 1000KGS | 2024mm | 3300mm | 1600mm |
51.2″ | 98.4″ | 7.9″ | 79.7″ | 129.9″ | 63″ | |||
TR510SHOP | 1500mm | 3000mm | 200mm | ± 0.05mm | 1300KGS | 2224mm | 3800mm | 1600mm |
59.0″ | 118.1″ | 7.9″ | 87.6″ | 149.6″ | 63″ | |||
TR710SHOP | 2000mm | 3000mm | 200mm | ± 0.05mm | 1500KGS | 2724mm | 3800mm | 1600mm |
78.7″ | 118.1″ | 7.9″ | 107.2″ | 149.6″ | 63″ | |||

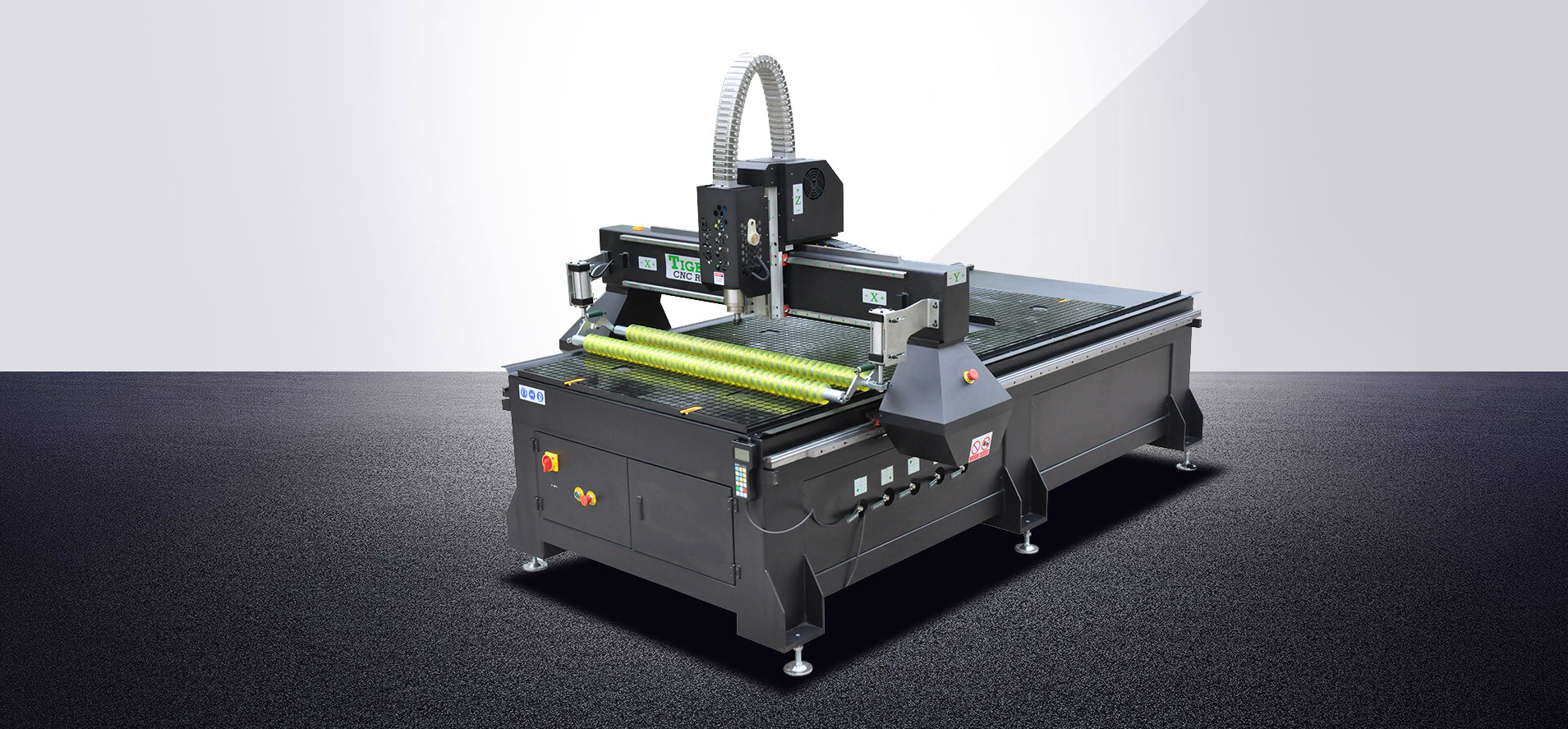

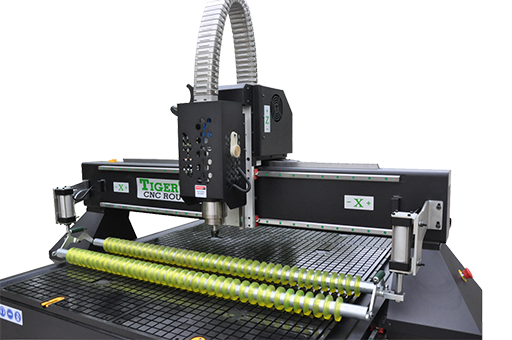

CNC - Nesting machining centre is the new high-performance machining centre for Nesting operations, compact and efficient, with a gantry structure, TigerTec offers top-of-the-range technology and guarantees optimum precision in every machining operation.
